Slabstock Foaming Machine

Slabstock Foaming Machine
Slabstock Foaming Machine
Product Code : 01
Product Description

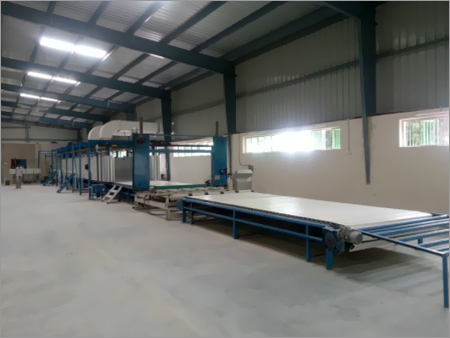

Slabstock Foaming Machine

The Slabstock Foaming Machine is efficient and user friendly. The slab stock machine is designed to be economical because it supports minimum wastage in the form of side skin and bottom skin. The machine is designed to deliver excellent density distribution. We are known manufacturers of slab stock foaming machines that can meet variable requirements of the industry. We have a quality assurance department which ensures that we meet both Indian and international quality standards. We use premium quality materials and electrical components in manufacturing our slab stock foaming machines which makes them robust and long lasting.

Some of the features of our slab stock foaming machine are:

  • Machine is fitted with Motorized fall Plate control on panel board.
  • First Conveyor is 50 m long with 47 m long side conveyor. The second conveyor is 18 m long
  • Machine has 8 ft. long block cutter with two side movable cutting blade system.
  • Machine is fitted with Unwinder System & Re-winder System for side paper.
  • Automatic Actuator System with pneumatically and electrically operated three way valves with control panel board.
  • Pumps- all chemical metering pumps drive with A.C. Electric Variable System.
  • Two Air Compressors of 3 HP and 1 HP
  • Fixed type Mixer Assembly with 15 H.P. Motor.
  • manual Type Moving Trolleys for Block Unloading & transfer = 4 no.

Flow ratio meter glass tube type:

  • T.D.I.:100 Kg.
  • MCl (Methylene Chloride): 12 Kg.
  • Catalysts 1: 10 Kg
  • Air Flow: 2 Kg
  • Separate 3 Pump Sets for pumping T.D.I., Poly One & MCl from dumps to tanks.
  • Control Panel with A.C. Electric Variable Drives.
